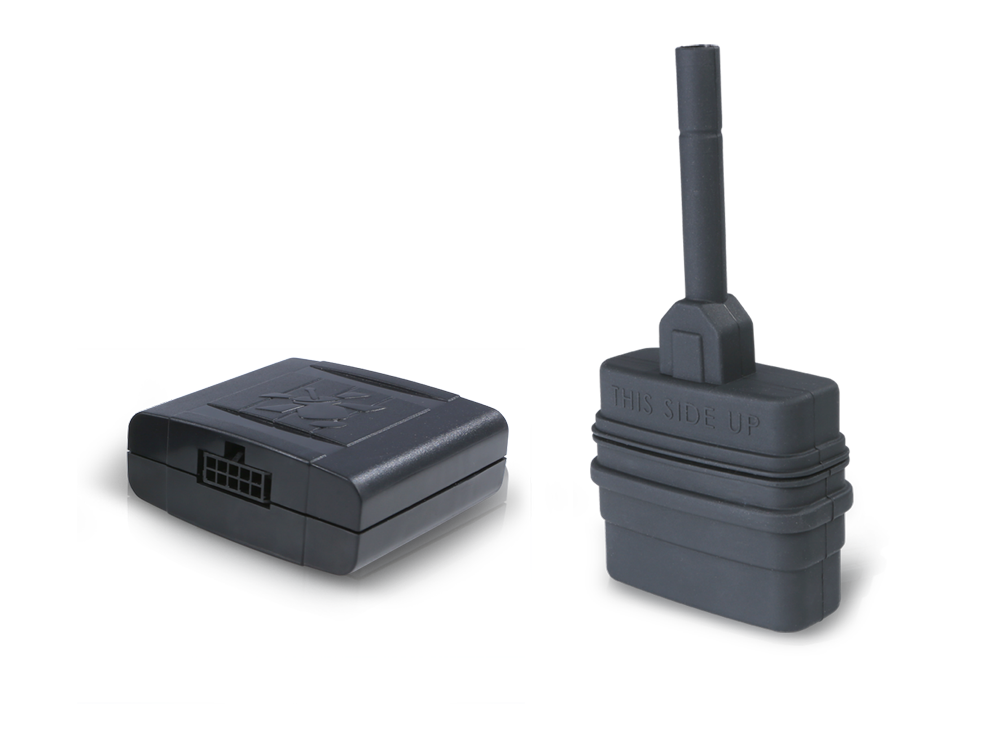

HELIOS TT - Track and Trace System

• Customized events through Starcom Systems propriety event generator
• Compact in size and can be easily hidden
• Very low power consumption
• Waterproof case available
• Geo-fencing alerts
• Tow alert
• Worldwide detailed maps
• Personalized alerts via Text message and E-mail

Type

• NXP ARM Cortex-M3

Memory:

• Static RAM: 128kb

• ROM: 34kb

• Flash: 2048kb



Power Voltage Range

• 8v-36v (supported in same unit)

Consumption

• 3mA in low power mode
• up to 120mA in working mode
• can reach up to 300mA if battery is charged

Type

• Lithium-ion Polymer

Power

• 3.75V, 550 mAh

GSM/GPRS - default

• Quad Band (850, 900, 1800, 1900)

Optional Modems

• UMTS/HSPA+, CDMA/1xRTT/EV-DO, LTE

Antenna type

• Built-in (concealed)

Data channels

• SMS & TCP/IP

Protocol

• Propriety – encrypted

Connection

• RS232

Type

• GPS, GLONASS (optional)

Time to First Fix (TTFF)

• 1 sec (hot start)

Positioning Accuracy

• 2.5m CEP (50%)

• Velocity: 0.2m/s (50%)

Antenna type

• Built in (concealed)

Type

• RS232

Speed

• 115,200bps (default)

Digital Inputs

• Max 2

Digital Outputs

• Max 1

Analog Inputs

• Max 1 (1 Digital input can be converted to Analog)

Type

• 3-Axis, 20 mg accuracy, up to 8g

Purpose

• Identify and report events of impact and accident

Immobilizer

• External – Gradual Stop

Disarming Options

• Key Pad, Dallas Key, Remote Control, RF Keypad

Size

• 21H x 60W x 57L (mm)
• 0.82H x 2.36W x 2.24L (inch)

Weight

• 120 (grams) 4.23 (Oz)

Operating Temp

• -40°C (-40°F) to +60°C (140°F)

Storage Temp

• -40°C (-40°F) to +85°C (185°F)

Humidity

• Max 90%
